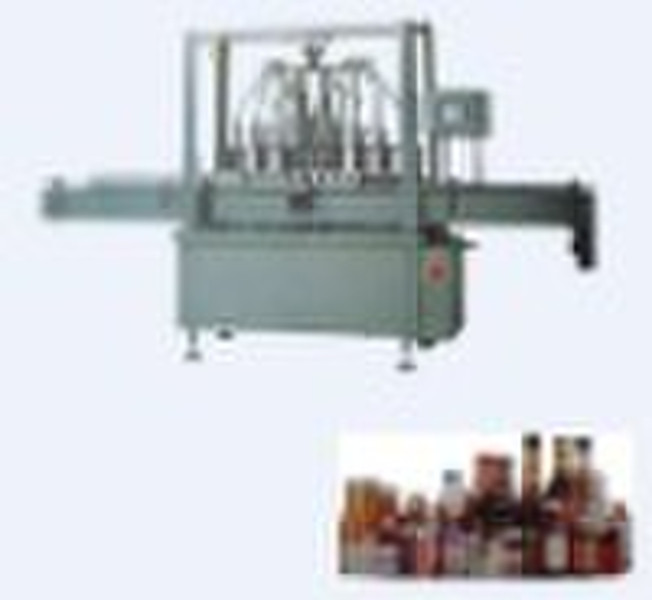

JZGN Piston Type Linear Filling Machine for liquid

Filling machine Function It is for the quantitative automatic liquid filling machine can be used in liquid, concentrated slurry filling operation, applicable to all types of round bottles, flat bottles and other special-shaped bottles. It is designed to straight-line working way, using PLC logic controller and various detection sensors and the folding cylinder to achieve the purpose of automatic control. Technical parameter Suitable container: Columniform bottles, round bottle, flat bottle and other special-shaped bottles Filling volume: 15-1100ml Filling speed: 1000-3000 bph ( it is up to the filling volume and filling head) Power supply: 220V, 50/60HZ Liquid viscosity range: the most 20 CP Electrical power: 1.5KW We can customize your order if you have special demands. Main character LCD touch interface, a simple mechanical adjustment, Operation is more easily Can store multiple sets of information, there is no need to debugging when the bottle type changes With the day or the cumulative number of filling display Convergence can be stand-alone or pipelining Touch screen, PLC, transducer and other electrical components selected imported brands Contact parts with some materials are 316L stainless steel
